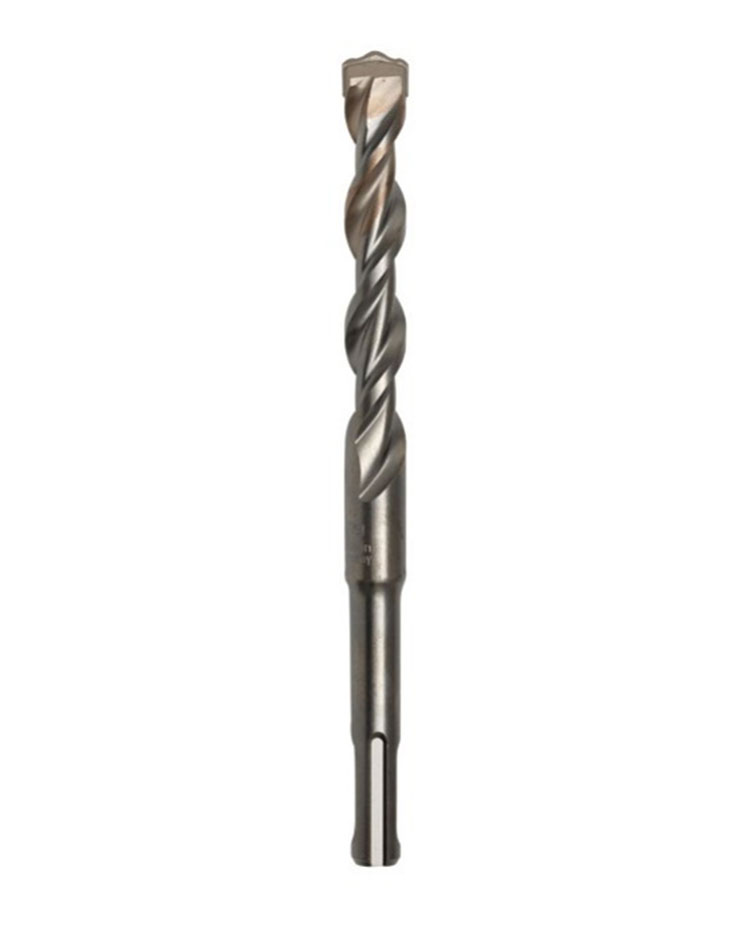

4-Plus Carbide Hammer Drill Bit SDS-PLUS – Fig. SDS

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Service

A new, fast, & tough carbide tip provides long life, easy centering, and fast drilling through all aggregates, concrete, masonry, brick, stone, and even rebar.

Notes

- Rotary Hammer Drill
- Self Centering Chisel Point
- Special Tungset Carbide Tip
- Copper / Silver Brazing
- ANSI Specification
- Fastest Dust Removal
- Fastest Drilling Speeds
- Clean Round Holes
- Polished Finish
- Industrial Quality

Part Number

715S61064
715S61064

715S41264
715S61264
715S81264
715S10316
715S12316
715S14316
715S16316

715S41464
715S61464
715S81464
715S11732
715S16732
715S20732

715S41664
715S61664
715S91664
715S11014
715S14014
715S16014
715S20014

715S62064
715S92064
715S12516

715S62464
715S92464
715S10038
715S12038
715S18038
715S24038

715S62864
715S10716
715S12716
715S18716

715S63264
715S10012
715S12012
715S12018
715S12024

715S63664
715S10916
715S12916
715S18916
Drill Size

5/32"
5/32"

3/16"
3/16"
3/16"
3/16"
3/16"
3/16"
3/16"

7/32"
7/32"
7/32"
7/32"
7/32"
7/32"

1/4"
1/4"
1/4"
1/4"
1/4"
1/4"
1/4"

5/16"
5/16"
5/16"

3/8"
3/8"
3/8"
3/8"
3/8"
3/8"

7/16"
7/16"
7/16"
7/16"

1/2"
1/2"
1/2"
1/2"
1/2"

9/16"
9/16"
9/16"
9/16"
O/A Length

4-1/2"
6-1/4"

4-1/2"
6-1/4"
8-1/4"
10"
12"
14"
16"

4-1/2"
6-1/4"
8-1/4"
11"
16"
20"

4-1/2"
6-1/4"
8-1/4"
11"
14"
16"
20"

6-1/4"
8-1/4"
12"

6-1/4"
8-1/4"
10-1/4"
12-1/4"
18"
24"

6-1/4"
10-1/4"
12-1/4"
18"

6-1/4"
10-1/4"
12-1/4"
18"
24"

6-1/4"
10-1/4"
12-1/4"
18"
Drilling Depth

2"
4"

2"
4"
6"
8"
10"
12"
14"

2"
4"
6"
9"
14"
18"

2"
4"
6"
9"
12"
14"
18"

4"
6"
10"

4"
6"
8"
10"
16"
22"

4"
8"
10"
16"

4"
8"
10"
16"
22"

4"
8"
10"
16"
Head Style

4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
4-PLUS

4-PLUS
4-PLUS
4-PLUS
4-PLUS
