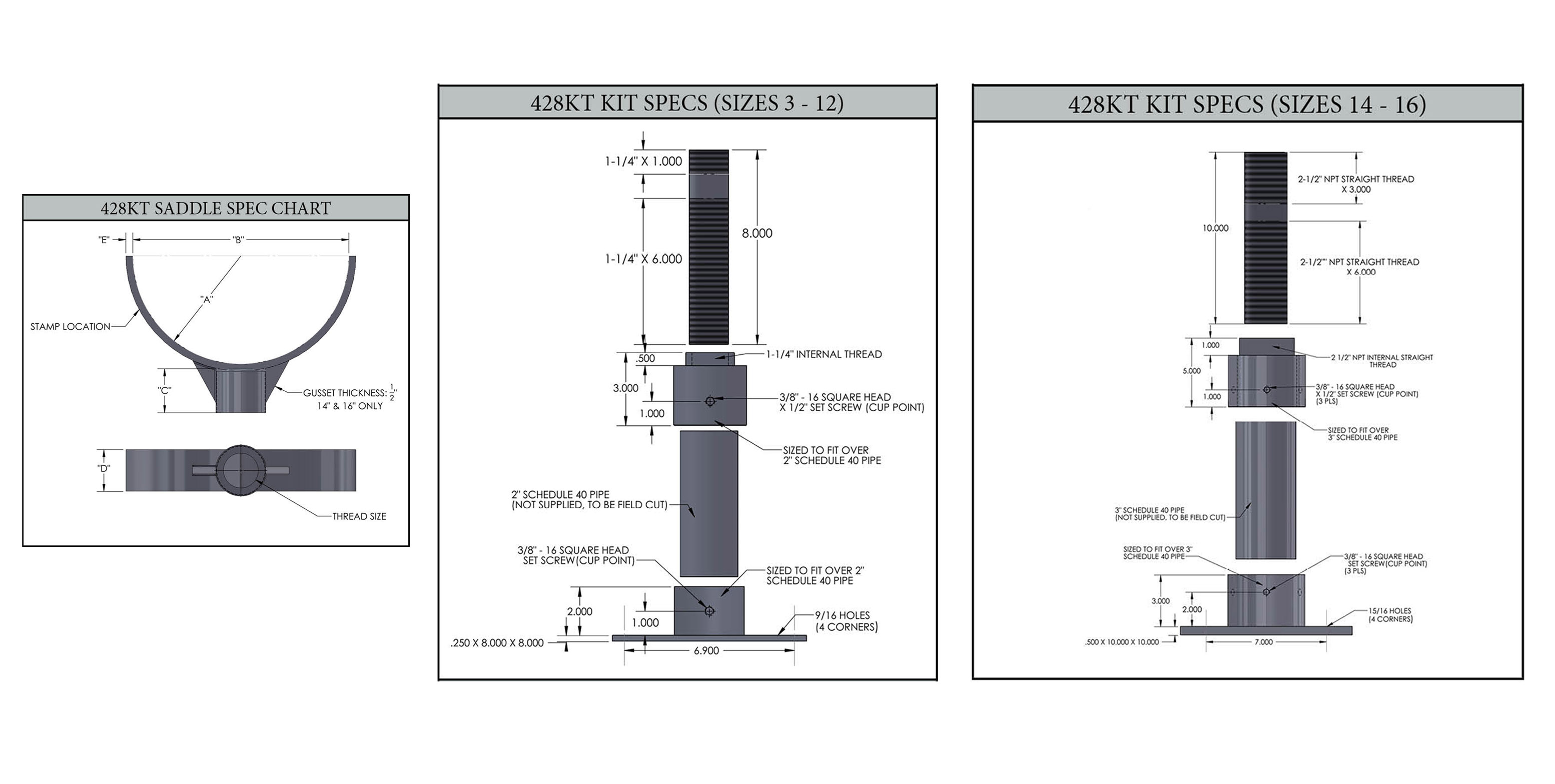

Ductile iron saddle with carbon steel coupling, carbon steel nipple and base plate, cast steel reducing coupling, stainless steel set screws. Also available in 316 stainless steel.
All items listed above are hot-dip galvanized except for stainless steel set screws
Designed to support pipe horizontally. Straight cut pipe thread on nipple provides up to 4-1/2 inches of vertical adjustability.
There are no approval options for this product.
Specify pipe size and figure number.
Saddles accommodate ductile iron pipe and IPS. Support requires 2" schedule 40 extension pipe to be cut in the field. Factory System Tested to 11,000 Lbs (Support Must Be Properly Aligned to Piping System)
