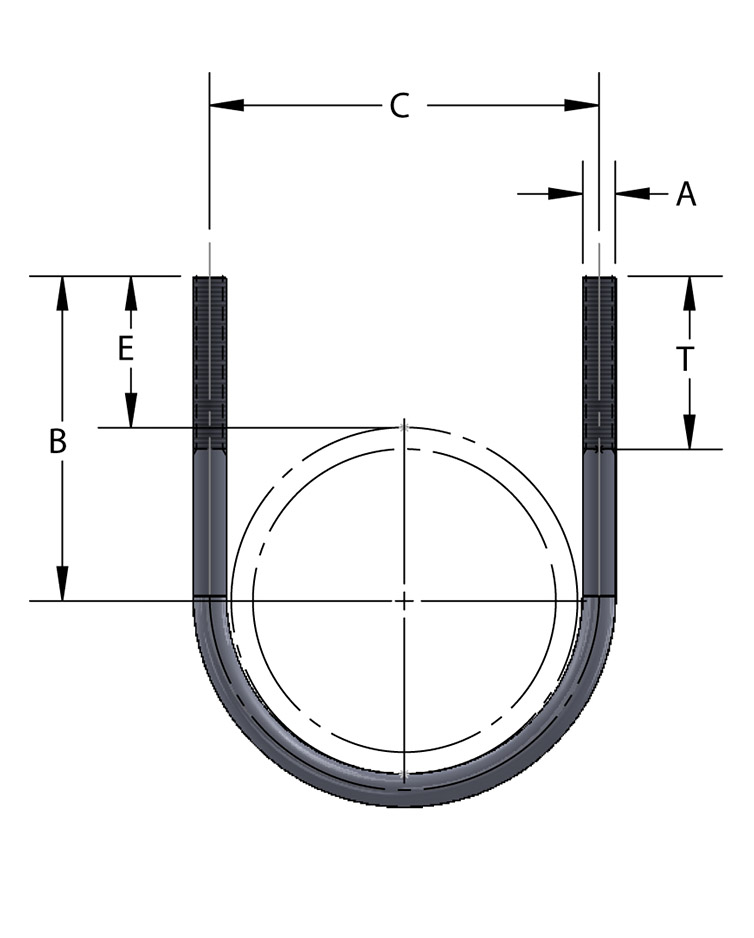

Light Duty U-Bolt (Less Nuts) – Fig. 37

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed as a support, guide or anchor for light duty pipe.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish. Hex nuts can be ordered separately.

Notes

Available in domestic.

Pipe Size

3/8
1/2
3/4

1
1 1/4
1 1/2

2
2 1/2
3

3 1/2
4
5

6
8
Pipe OD

0.675
0.840
1.050

1.315
1.660
1.900

2.375
2.875
3.500

4.000
4.500
5.563

6.625
8.625
A

1/4
1/4
1/4

1/4
1/4
1/4

1/4
3/8
3/8

3/8
3/8
3/8

1/2
1/2
B

1 1/8
2 1/16
2 1/8

2 5/16
2 7/16
2 1/2

2 3/4
3 1/8
3 1/2

3 11/16
3 7/8
4 5/8

7 1/4
9 1/8
C

1
1 1/4
1 3/8

1 5/8
2
2 1/4

2 11/16
3 3/8
3 7/8

4 1/2
4 7/8
6

7 1/4
9 1/8
E

13/16
1 5/8
1 5/8

1 5/8
1 5/8
1 9/16

1 9/16
1 11/16
1 3/4

1 11/16
1 5/8
1 13/16

1 13/16
1 13/16
T

3/4
1 3/4
1 3/4

1 3/4
1 3/4
1 3/4

1 3/4
2
2

2
2
2 1/4

2 1/4
2 1/4
Wgt Each (lbs)

0.04
0.06
0.06

0.06
0.08
0.08

0.10
0.28
0.32

0.34
0.38
0.46

0.94
1.16
Max Rec Load (lbs)

485
485
485

485
485
485

485
1220
1220

1220
1220
1220

2260
2260
