Copper Clevis Hanger – Fig. 110CT

For more product information please call (631) 665-9300

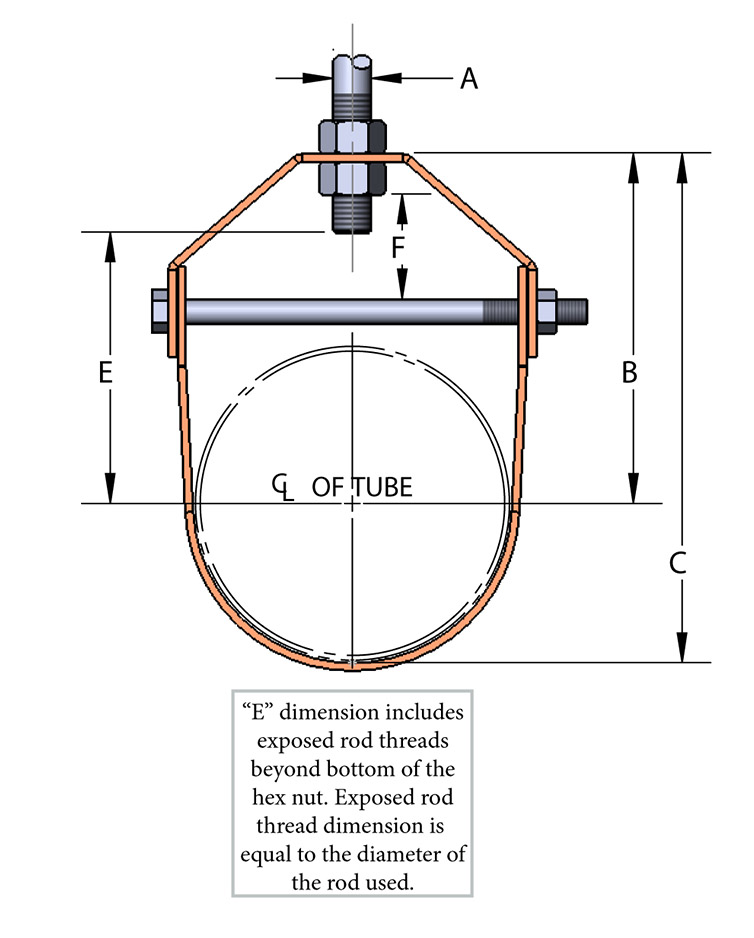

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal
Material

Carbon Steel.

Finish

Copper plated (110CT) or Copper epoxy coated (COPPER-GARD). COPPER-GARD products offer superior corrosion protection due to the epoxy coat- ing over electro-galvanized steel. The alternative copper plating, that has been done historically, identi- fies the product and is not intended for protection. Refer to MSS SP-58, 13.3.

Service

Designed for the suspension of stationary copper tubing.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 1), A-A-1192 A (Type# 1), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 1).

Ordering

Specify tube size and figure number.

Notes

There are no notes for this product.

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
  • Pipe OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    2.625
    3.125
    3.625
    4.125
    5.125
    6.125
  • Material Size Top
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    14ga x 7/8
    12ga x 1 3/16
    12ga x 1 3/16
    12ga x 1 3/16
    11ga x 1 3/16
    8ga x 1 1/4
    8ga x 1 1/4
  • Material Size Bottom
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    18ga x 7/8
    16ga x 7/8
    14ga x 1 3/16
    14ga x 1 3/16
    14ga x 1 3/16
    14ga x 1 3/16
    8ga x 1 1/4
    8ga x 1 1/4
  • Bolt
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    1/4
    5/16
    5/16
    3/8
    3/8
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    5/8
    5/8
  • B
    1 7/8
    1 3/4
    1 13/16
    2 1/8
    2 1/2
    2 15/16
    4 7/8
    4 1/2
    4 3/4
    5 7/8
    5 7/8
    6 1/16
  • C
    2 3/16
    2 1/8
    2 5/16
    2 3/4
    3 1/4
    4
    5 3/4
    6 1/8
    6 1/2
    7 7/8
    8 3/4
    9
  • E
    1 1/8
    1
    1 1/16
    1 5/16
    1 3/4
    2 3/16
    3 3/8
    3 7/8
    3 11/16
    4 3/4
    4 3/4
    4 3/4
  • F
    1/2
    1/2
    1/2
    3/4
    15/16
    1 1/16
    2 1/16
    2
    1 13/16
    2 9/16
    1 5/8
    1 1/2
  • Wgt Each (lbs)
    0.12
    0.12
    0.12
    0.12
    0.18
    0.24
    0.58
    0.60
    0.66
    1.02
    1.68
    1.84
  • Max REC Load (lbs)
    150
    250
    250
    250
    250
    250
    350
    350
    350
    400
    550
    550
