There are currently no diagram notes for this product.
Galvanized steel, also available in 304 and 316 stainless steel.
Galvanized.

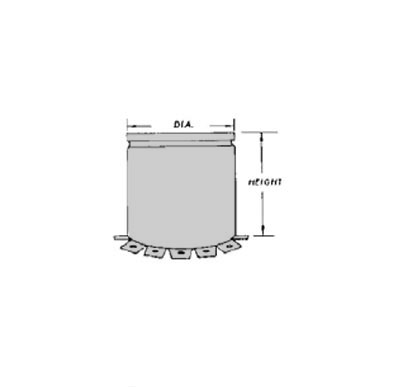

When attached to roof decking, sleeve provides a channel for piping, eliminating the need to core drill. Optional tabs facilitate fastening to deck. Optional covers seal out wet cement during pour and safely cover sleeve until pipe installation.
There are no approval options for this product.
Specify diameter, height, and figure number, with or without tabs. Covers must be ordered separately.
Saddles accommodate ductile iron pipe and IPS. Support requires 2" schedule 40 extension pipe to be cut in the field. Factory System Tested to 11,000 Lbs (Support Must Be Properly Aligned to Piping System)
