Socket Clamp – Fig. 600

For more product information please call (631) 665-9300

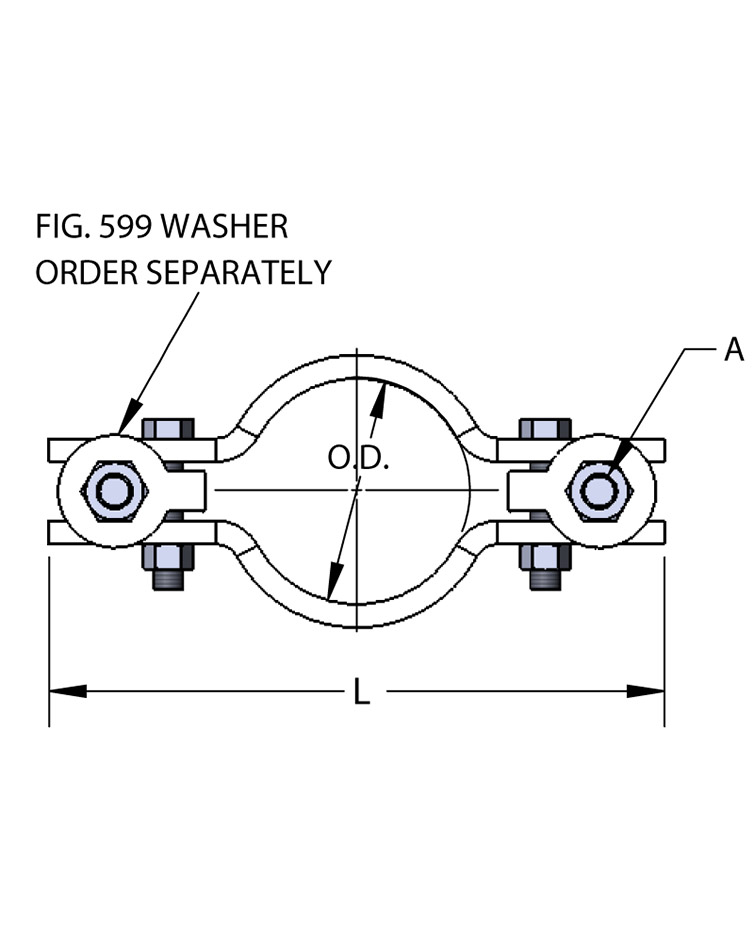

Diagram Notes

Click the image to make it larger

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed to be used to clamp joints of underground AWWA ductile iron water lines to prevent joint separation due to excessive water pressure.

Approvals

There are no approval options for this product.

Ordering

Specify size, figure number and finish.

Notes

See below for items that are commonly used with this product.

  • Pipe Size
    3
    4
    6
    8
    10
    12
    14
    16
    18
    20
    24
  • Pipe OD
    3.960
    4.800
    6.900
    9.050
    11.100
    13.200
    15.300
    17.400
    19.500
    21.600
    25.800
  • Material Size
    2 x 3/8
    2 x 3/8
    2 x 3/8
    2 x 1/2
    2 x 1/2
    2 x 1/2
    3 x 3/4
    4 x 3/4
    4 x 3/4
    5 x 3/4
    5 x 3/4
  • Bolt
    5/8
    5/8
    5/8
    5/8
    5/8
    5/8
    7/8
    1
    1 1/4
    1 1/4
    1 1/2
  • A
    3/4
    3/4
    3/4
    3/4
    3/4
    3/4
    1
    1 1/8
    1 1/4
    1 3/8
    1 1/2
  • L
    12
    12 3/4
    15 1/2
    17 1/2
    19 1/2
    22
    28 1/2
    30 3/4
    34 5/8
    37 1/2
    43
  • Wgt Each (lbs)
    5.95
    8.00
    10.00
    12.10
    13.63
    15.65
    45.00
    63.00
    76.00
    100.50
    118.00
Items Commonly Used With
products
Corperation Eye Bolt
Fig. 575
products
Socket Clamp Washer
Fig. 599
products
Ductile Lug
Fig. 599a
