Spring Vibration Isolators

Fig. 34

(631)665-9300

Vibration Hanger - Neoprene – Fig. 34

For more product information please call (631) 665-9300

Diagram Notes

Click the image to make it larger

Download Submittal

Materials / Finishes

Painted Carbon Steel Housing with Neoprene Rubber Element (34)

Service

Designed for effective vibration isolation for piping or suspended equipment. Typical
applications include fans, air handling units, piping and suspended ceilings.

Approvals

There are no approval options for this product.

Ordering

Specify figure number, isolator size, rod size and load.

Notes

See hanger selection guide.

Isolator Size

EMP - 1 - A
EMP - 1 - B
EMP - 1 - C
EMP - 1 - D

EMP - 2 - A
EMP - 2 - B
EMP - 2 - C
EMP - 2 - D

EMP - 3 - A
EMP - 3 - B
EMP - 3 - C
EMP - 3 - D
Max Load (lbs)

60
130
250
430

380
520
840
1070

750
1350
1800
3050
Deflection (in)

0.50
0.50
0.50
0.50

0.50
0.50
0.50
0.50

0.50
0.50
0.50
0.50

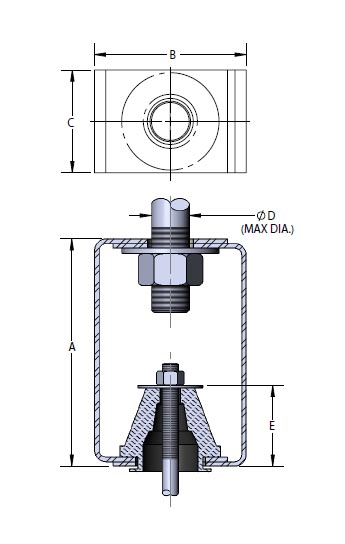

Dimensions (in)

A

4
4
4
4

5-1/2
5-1/2
5-1/2
5-1/2

6-1/4
6-1/4
6-1/4
6-1/4
B

2-7/8
2-7/8
2-7/8
2-7/8

3-3/4
3-3/4
3-3/4
3-3/4

4-1/4
4-1/4
4-1/4
4-1/4
C

2-1/2
2-1/2
2-1/2
2-1/2

4
4
4
4

5-3/8
5-3/8
5-3/8
5-3/8
D

1/2
1/2
1/2
1/2

3/4
3/4
3/4
3/4

1
1
1
1
E

1-7/8
1-7/8
1-7/8
1-7/8

2-3/8
2-3/8
2-3/8
2-3/8

2-3/8
2-3/8
2-3/8
2-3/8

Isolator Size

Max Load (lbs)

Deflection (in)

Dimensions (in)

A

B

C

D

E
