Copper Tube Split Ring Extension Hanger

Adjustable Roller Hanger – Fig. 272

For more product information please call (631) 665-9300

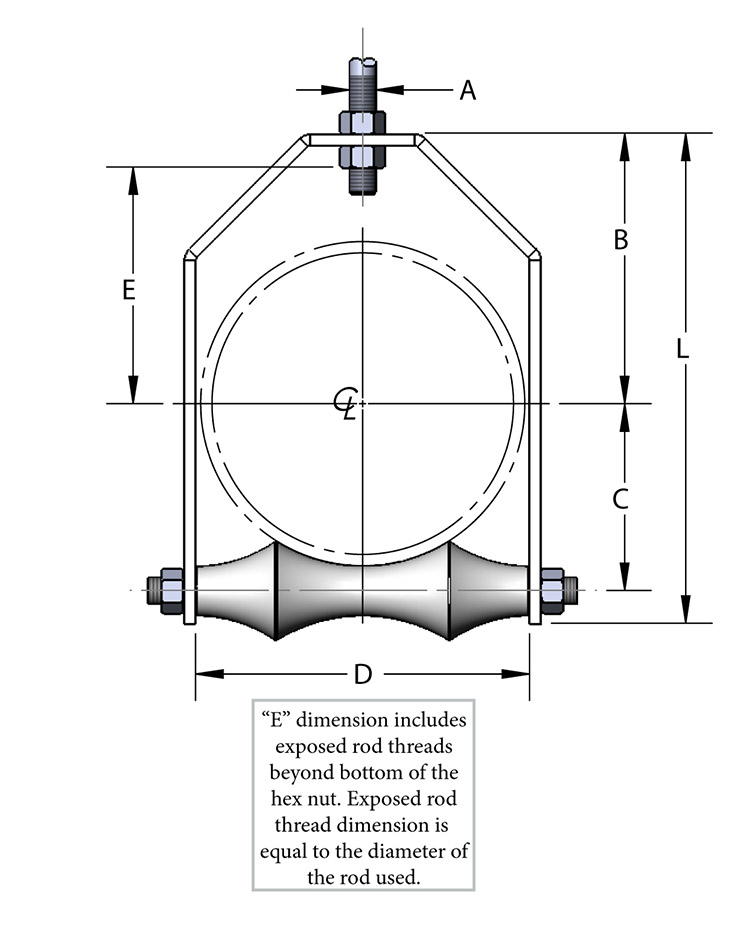

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut. Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal
Material

Carbon steel yoke and cross-bolt with cast iron roller, also available in 316 stainless steel.

Finish

Plain, electro-galvanized or painted.

Service

Designed for the suspension of pipe where longitudinal movement of pipe may occur due to expansion and contraction, and where vertical adjustment may be necessary.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 44), A-A-1192 A (Type# 43) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 43).

Ordering

Specify roller size, figure number and finish. Please remember to consider insulation thickness when sizing rollers.

Notes

Available in domestic.

  • Hanger Size
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    7
    8
    10
    12
    14
    16
    18
    20
  • Material Size
    8ga x 1.25
    8ga x 1.25
    8ga x 1.25
    3ga x 1.50
    3ga x 1.50
    3ga x 2.00
    3ga x 2.00
    3ga x 2.00
    3/8 x 2.00
    3/8 x 2.50
    1/2 x 2
    1/2 x 2 1/2
    1/2 x 3
    1/2 x 3
    5/8 x 3
  • A
    1/2
    1/2
    1/2
    1/2
    5/8
    5/8
    3/4
    3/4
    7/8
    7/8
    7/8
    1
    1
    1
    1 1/4
  • B
    3 3/8
    3 15/16
    4 5/16
    4 5/8
    4 13/16
    5 3/4
    6 3/8
    6 5/16
    7 9/16
    8 3/4
    9 5/8
    11 1/4
    12 1/4
    13 1/4
    14 1/4
  • C
    1 9/16
    1 7/8
    2 1/8
    2 1/2
    2 13/16
    3 3/8
    3 15/16
    4 1/2
    5 1/8
    6 1/4
    7 3/8
    8 3/8
    9 3/8
    10 1/2
    11 5/8
  • D
    2 7/8
    3 1/4
    3 13/16
    4 5/16
    4 7/8
    5 7/8
    7
    8
    9
    11 1/8
    13
    14 1/4
    16 1/4
    18 1/4
    20 1/4
  • E
    2 1/4
    2 13/16
    3 3/16
    3 7/16
    3 3/8
    4 5/16
    4 5/8
    4 9/16
    5 7/16
    6 5/8
    7 7/8
    9 1/4
    10 1/4
    11 1/4
    12 1/4
  • L
    5 5/8
    6 1/2
    7 3/16
    7 15/16
    8 1/2
    9 15/16
    11 1/4
    11 5/8
    13 7/8
    16 1/4
    18 7/8
    21 7/8
    24 1/8
    26 1/2
    28 1/8
  • Wgt Each (lbs)
    1.14
    1.47
    1.62
    2.76
    3.16
    4.62
    6.08
    7.59
    11.83
    17.29
    22.50
    33.00
    46.00
    50.50
    65.00
  • Max REC Load (lbs)
    150
    225
    310
    390
    475
    685
    780
    780
    780
    965
    1200
    1200
    1200
    1400
    1600
